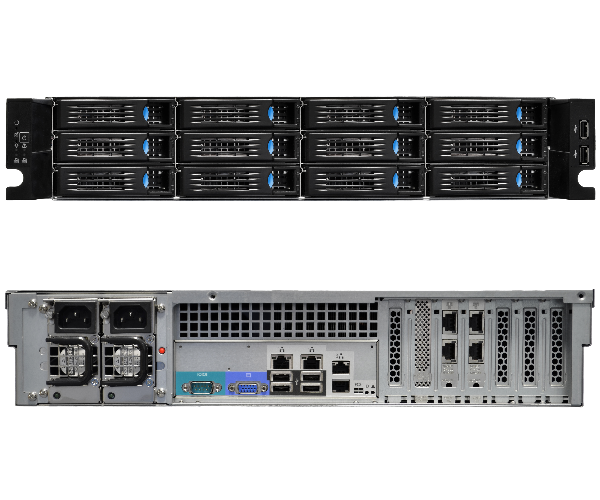

Product Overview The Intel Storage Server SSR212MC2 is a flexible hardware platform which is built to support Intel dual-core and quad-core CPU technologies, the SSR212MC2 offers performance and flexibility. The SSR212MC2 is a 2U rackmount storage server that supports 12 enterprise-class Serial Attached SCSI (SAS) or highcapacity Serial ATA (SATA) HDDs. This PCI Express*-based platform supports fully buffered DIMMs and up to two high-performance dual-core or quad-core Intel® Xeon® processors. Flexible network connectivity includes Ethernet, Fibre Channel, or Infiniband via add-in cards.

Features Benefits
Support for up to 12 hot-swappable SAS or SATA drives in a 2U form factor Easily add up to 9 TB of raw storage (with 750 GB SATA HDDs) without system downtime for future storage capacity needs. SATA drives currently provide higher capacity at a lower cost than SCSI or Fibre Channel drives. SAS drives provide enterprise-class performance and reliability
Intel Xeon® processors Dual Support for one or two 5100 series or E5300 series dual-core or quad-core processors. Processing performance to meet the demanding needs of storage virtualization
1 GB Ethernet Network Interface Connections Provide fast access to iSCSI or network attached data
Intel® RAID Controller SRCSAS144e Hardware support for RAID 0, 1, 5, 10, 50
Product Specification
Raw storage capacity Expandable to 9.0 TB - using twelve 750 GB (7.2k RPM) SATA drives; Expandable to 3.6 TB - using twelve 300 GB (15k RPM) SAS drives
Data drive bays 12 Serial Attached SCSI (SAS) or Serial ATA (SATA) Hot Pluggable
Intel® RAID Controller SRCSAS144e Hardware support for RAID 0, 1, 5, 10, 50
Support for up to 12 hot-swappable SAS or SATA drives in a 2U form factor Easily add up to 9 TB of raw storage (with 750 GB SATA HDDs) without system downtime for future storage capacity needs. SATA drives currently provide higher capacity at a lower cost than SCSI or Fibre Channel drives. SAS drives provide enterprise-class performance and reliability
Intel® Xeon® processors Dual Support for one or two 5100 series or E5300 series dual-core or quad-core processors. Processing performance to meet the demanding needs of storage virtualization
Processor Dual-Core Intel® Xeon® processor 5100 series, 1066 MHz FSB with 4 MB of L2 cache Quad-Core Intel® Xeon® processor E5300 series, up to 1333 MHz FSB with 8 MB of L2 cache
Memory capacity 8 slots, expandable to 32 GB maximum
Memory type Fully buffered DIMM technology (FBDIMM) memory. DDR2-533 and DDR2-677 FBDIMMs
Processor Dual-Core Intel® Xeon® processor 5100 series, 1066 MHz FSB with 4 MB of L2 cache Quad-Core Intel® Xeon® processor E5300 series, up to 1333 MHz FSB with 8 MB of L2 cache
Enclosure controller On-board Vitesse VSC410* micro-controller
Temperature sensor Two temperature sensors are located on the backplane and baseboard that allows drive cage temperature monitoring by enclosure management
Client connectivity Client connectivity via Internet Protocol Small Computer System Interface (iSCSI) Dual GB/s Ethernet
Input/Output
PCI SSR212MC2R: One PCI Express* (PCIe) x8 slot, two PCIe x4 slots, one PCI-X slot SSR212MC: Two PCIe x8 slots, two PCIe x4 slots, two PCI-X slots
USB Four USB 2.0-compatible connectors (rear)
Serial ports One DB9 9-pin connector (rear)
Video port One standard VGA-compatible 15-pin connector (rear)
LAN port Two 10/100/1000 MB RJ-45 (rear)
Other One stacked PS2 Mouse/Keyboard (rear)
Chassis
Form factor 2U rackmount chassis , supports low-profile PCI add-in cards only
Height 87.9 mm, 3.46 in.
Width 447 mm, 17.6 in. (across body of chassis)
Depth 707 mm, 27.83 in. (from rack posts to max extremity of chassis)
Weight As shipped (zero drives): approximately 20 kg, 44 lbs. Fully configured (12 drives): approximately 30 kg, 66 lbs, Shipping container: 3.2 kg, 7 lbs
Rack support Rail mount, compatible with four-post rackmount only
System Cooling
Fans Chassis includes ten hot-swappable redundant system fans for cooling the hard drives, baseboard and SAS Host Bus Adapter (HBA) card
Power
Configuration 850 W continuous, 1+1 redundant power supplies. Intel® Storage Server SSR212MC2 ships with one 850 W power supply
