Enterprise data storage solutions need a robust testing environment that is evaluated by replicating situations from the real world. That’s why Open-E’s partners regularly test their hardware in our laboratories. Systems that have been certified by Open-E’s engineers’ are fully compatible with Open-E storage software and considered suitable for all storage applications – performing even better in specific setups, depending on the equipment and configuration.

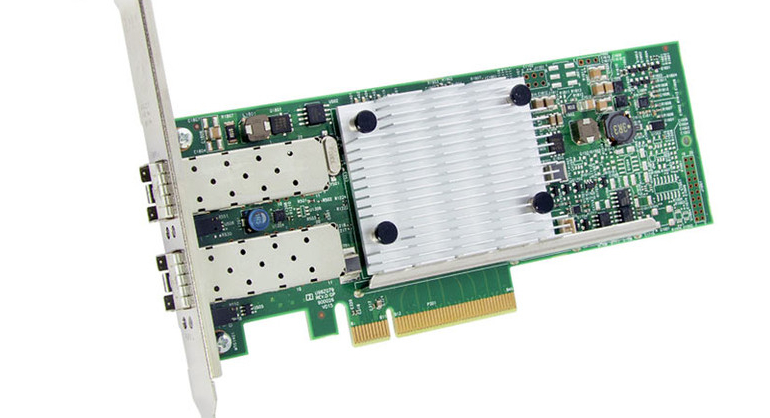

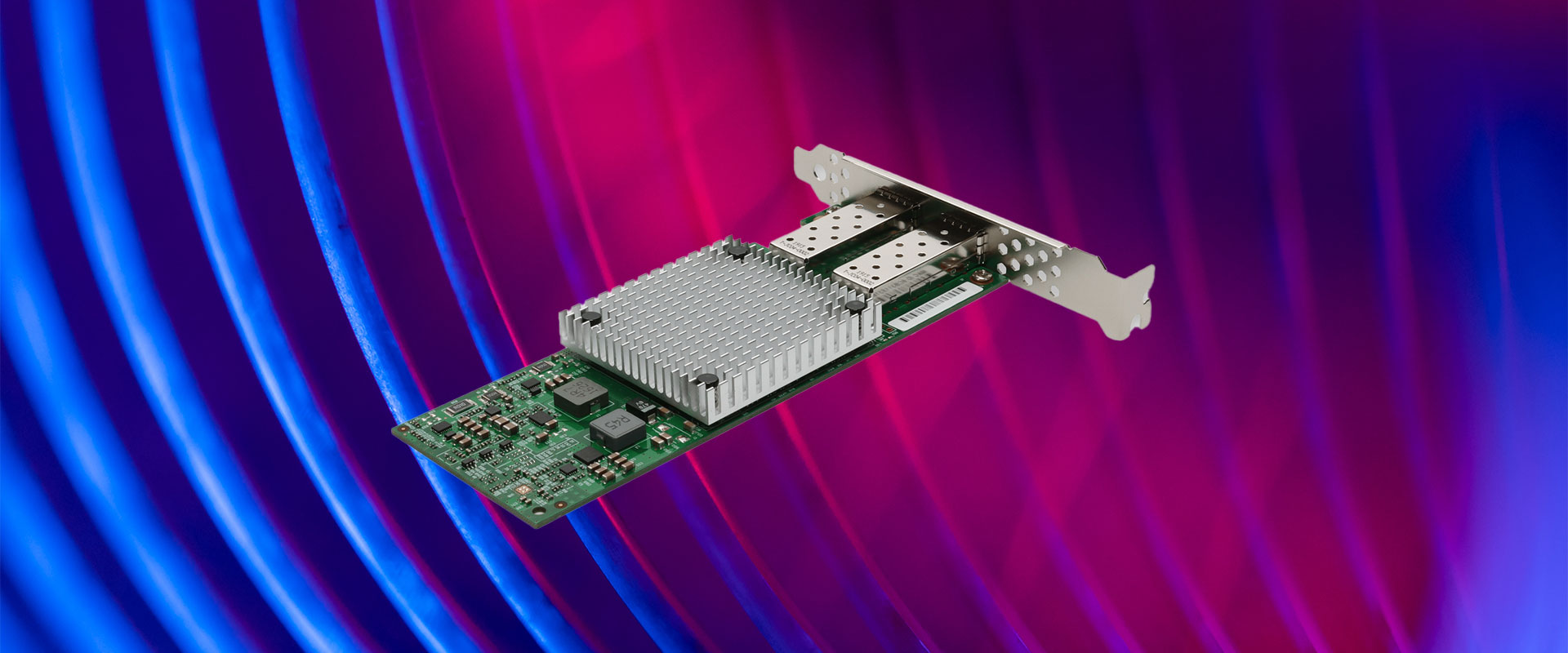

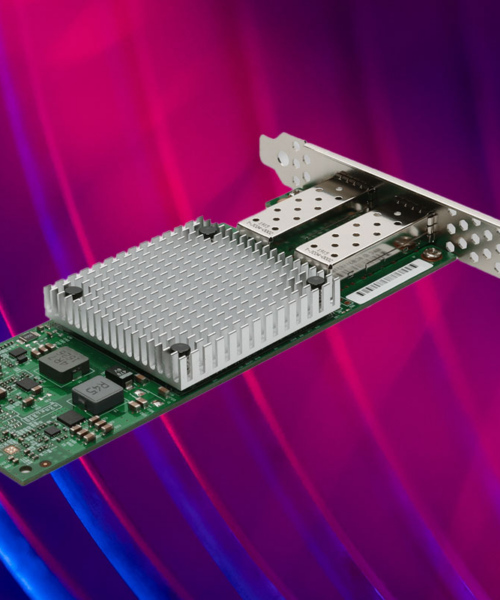

About QLE3442-CU-CK (SFP+)
The network adapter from QLogic delivers 10GbE performance across two ports. It’s a great choice for workload-intense virtualized computing environments. Through switch-independent NIC partitioning it enables provisioning of 10GbE ports for greater flexibility during deployment and improves CPU utilization for TCP/IP network traffic. The adapters can use either copper or optical connectors.
Module Model | QLogic FTLX8571D3BCL-QL |
Bus Interface | PCI Express Gen3 x8 |
Firmware | bc 7.10.36 |
Manufacturer | QLogic 3400 Series |
Chipset | BCM57840 |
Testing methodologies
Open-E’s engineers used the following software to perform benchmarks:
- FIO – an I/O performance benchmarking utility for Linux, UNIX-like systems and Windows
We tested the QLogic network adapter (driver version 1.78.58) with Open-E JovianDSS (b12855) software defined storage and Open-E DSS V7 (b10529).
These are the profiles that were used for the tests:
Profile | Block Size | Random | Sequential | READ | WRITE | IO Depth | Job Amount |
VDI | 4KB | 80 | 20 | 20 | 80 | 8 | 2 |
Exchange 2003 | 4KB | 80 | 20 | 60 | 40 | 3 | 1 |
Exchange 2007 | 8KB | 80 | 20 | 55 | 45 | 3 | 1 |
OLTP | 4KB | 100 | 0 | 70 | 30 | 2 | 1 |
SQL Server | 16KB | 100 | 0 | 66 | 34 | 2 | 1 |
CCTV | 32KB | 10 | 90 | 20 | 80 | 8 | 2 |
Database | 8KB | 100 | 0 | 67 | 33 | 8 | 2 |
Fileserver | 32KB | 100 | 0 | 80 | 20 | 8 | 2 |
Media Streaming | 64KB | 0 | 100 | 95 | 5 | 8 | 2 |
WEB Server | 4KB | 100 | 0 | 100 | 0 | 8 | 2 |
ran_WRITE | 512B | 100 | 0 | 0 | 0 | 8 | 2 |
ran_READ | 512B | 100 | 0 | 100 | 0 | 8 | 2 |
seq_WRITE | 1M | 0 | 100 | 0 | 100 | 8 | 2 |
seq_READ | 1M | 0 | 100 | 100 | 0 | 8 | 2 |

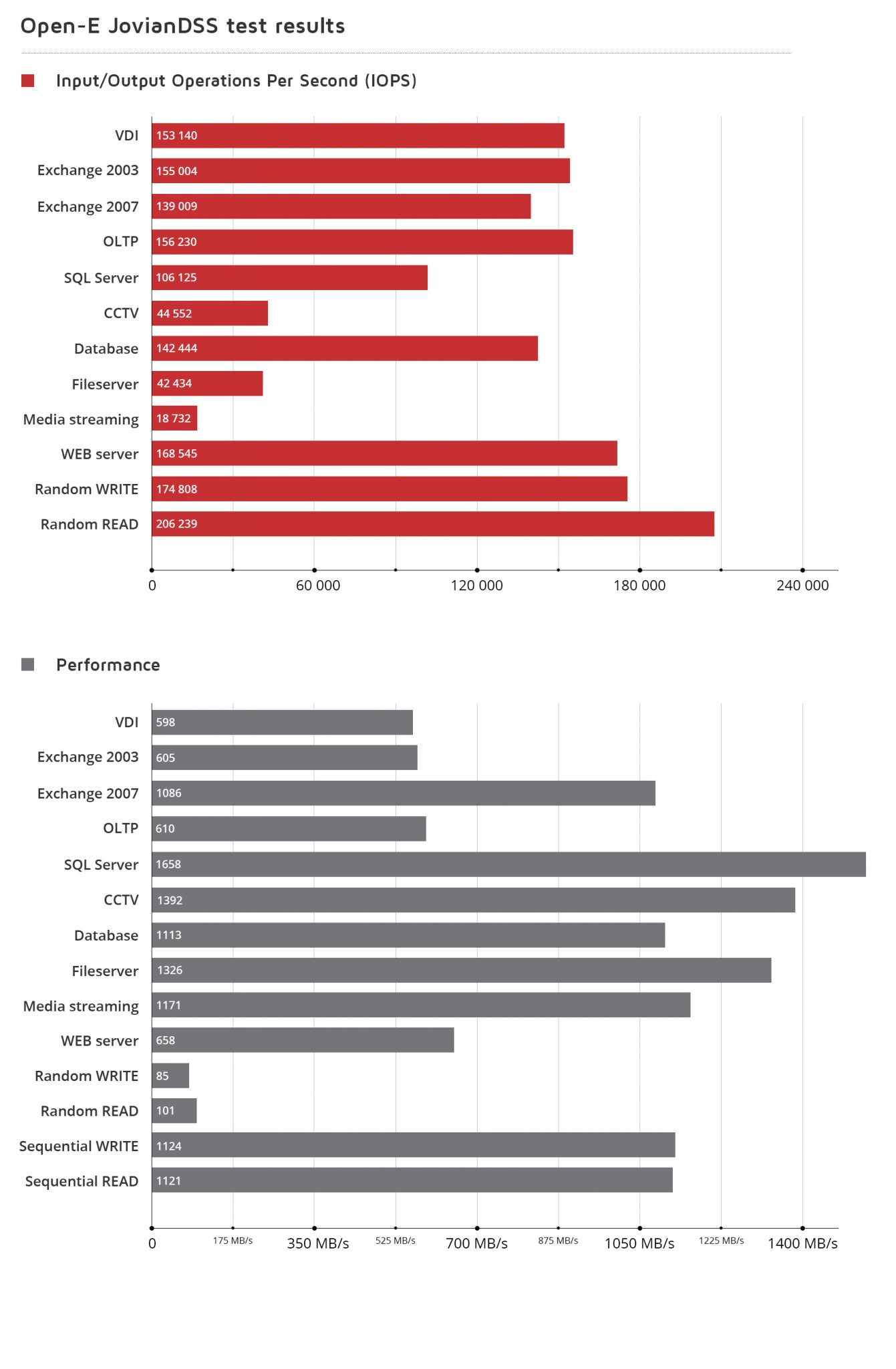

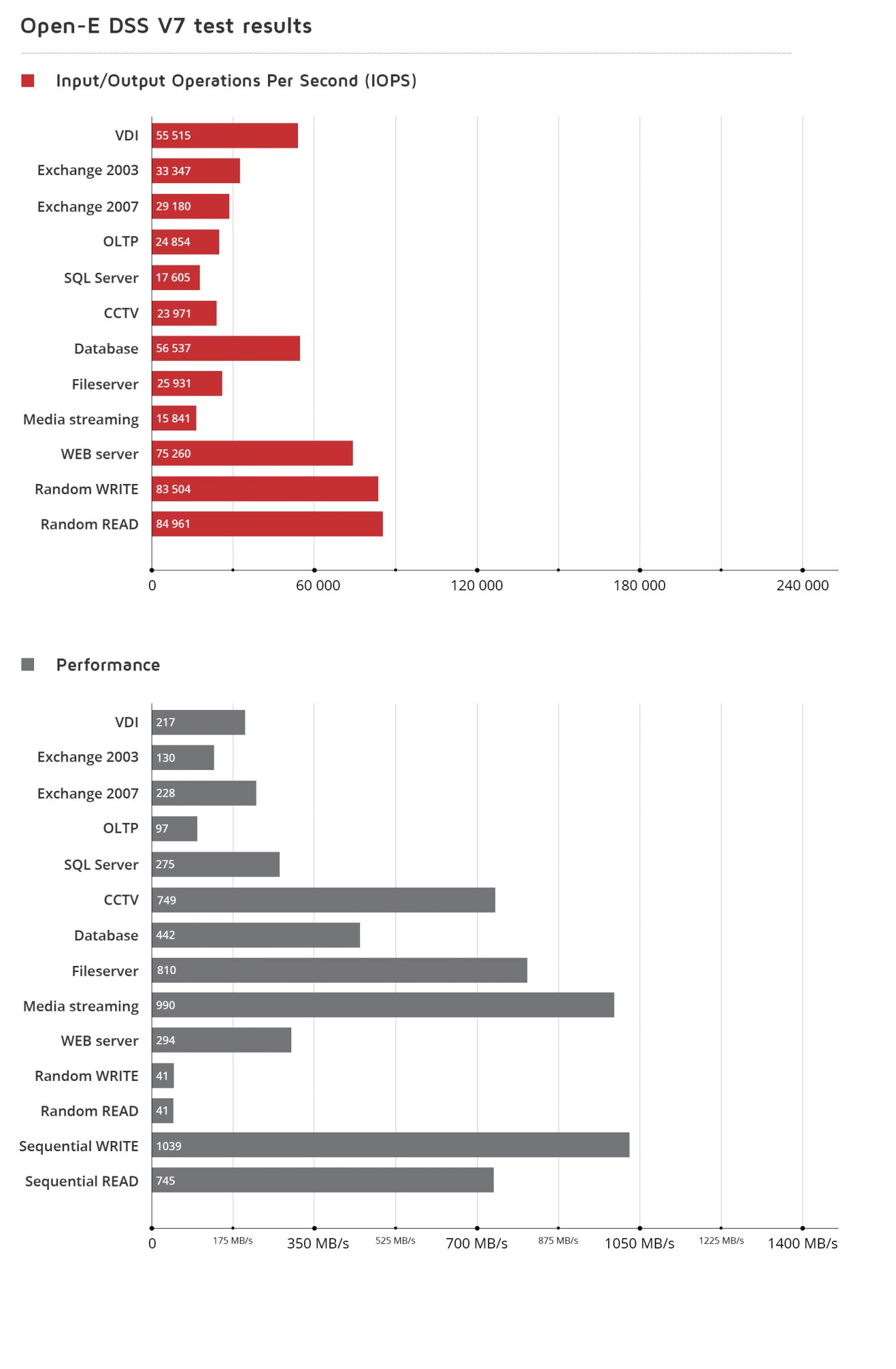

Performance Benchmarks
Open-E engineers tested specific profiles to determine strengths and weaknesses of each component. These are the results:
Summary
The QLogic Intelligent Ethernet Adapter QLE3442-CU-CK successfully passed all storage performance and IOPS tests. It provides host offload, which is especially useful in virtualized server environments. Our engineers recommend the adpaters to be used for any storage scenario. The card especially performed well with software-defined Open-E JovianDSS – reaching its maximum performance.
