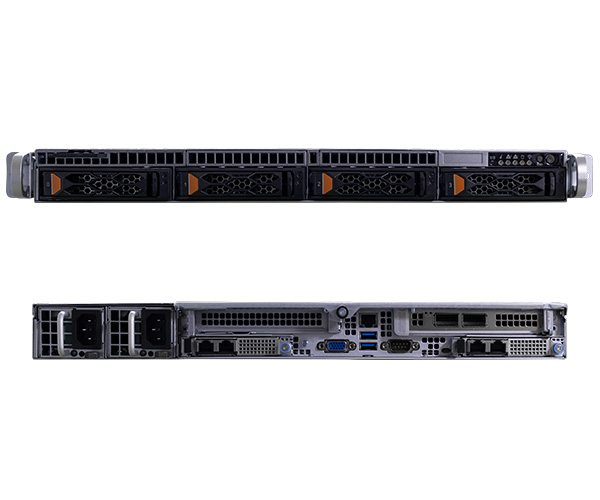

The SENYUM Supermicro 1U-STR-NVMe HA Cluster is a balanced, flexible, and high-performance High-Availability (HA) cluster system designed to meet the data storage needs of medium-sized companies. This system is designed to provide a redundant and fault-tolerant data storage solution in a compact 1U rack.
The system is engineered for peak performance and reliability in any environment. It features a robust Super X13DDW-A motherboard and two Intel Xeon Silver 4410 processors (20 total cores at 2.7GHz) to handle demanding workloads without performance drops, even with intense database access. This versatile 1U system supports options for 4, 8, or 10 NVMe disks (up to 30TB each) and massive scalability with up to 4TB of RAM. It provides ultra-fast data integrity and flow thanks to four 10Gbit network cards and a high-performance 100Gbit dual-port replication interface between the two nodes. This Open-E JovianDSS-based storage system unifies the unique features of software-defined storage with compact, ultra-fast, and scalable hardware.
The solution is ideal for customers who require a data storage system that is always operational and can withstand availability issues caused by hardware or network connection failures. It is particularly geared towards delivering shared iSCSI SAN data storage or a block storage system with high availability to virtualization platforms like VMware, Proxmox, and other Hypervisor systems.
Taking all that into account, the SENYUM Supermicro All-NVMe HA Cluster turns out to be a perfect solution for:
- Medium-sized Companies
- SAN Data Storage
- Block Storage
- Virtualization
- High-density Storage
File size: 2.8 MB
Technical specification of the system
| Motherboard | Supermicro X13DDW-A |
| CPU | Intel(R) Xeon(R) Silver 4410T 10x 2.70GHz |
| Chassis | Zstor GS41102 |
| RAM | 4x Hynix HMCG88AGBRA190N DDR5 RDIMM ECC 5600MHz |
| Storage raw capacity | 30.72TB |
| Data drives | 4x Micron 7500 PRO 7.68TB U.3 NVMe Gen4. MTFDKCC7T6TGP-1BK1JABYY |
| Network interface | Broadcom BCM57416 NetXtreme-E Dual-Media 10G RDMA Broadcom BCM57508 NetXtreme-E 100Gb/s |
| Form factor | 1U |
