On- & Off-site Data Protection

For:

Open-E JovianDSS

Rating:

Infographic of
Watch Video

What is it and how can you benefit?

  • Backup of everything
    All running virtual machines with applications and data, even databases backups are consistent.
  • Solved problem of backup window
    Backup window reduced to minutes, only data changes are replicated every interval.
  • Protection against Ransomware
    Very frequent snapshots with instant access to all data provide quick way to roll-back to the state before a virus attack.
  • Instant access to and restore of previous data versions
    Old data versions can be accessed and restored quickly. Via SMB every user has direct access to "Previous Versions" without the help of an administrator.
  • Very light backup engine
    Continuous interval-based replication works in the background with insignificant influence on production. Option to skip virtual machine snapshots in very heavy load time frames in VMware environments. Third party backup solutions are "very heavy" and generate high load during backup.
  • Optional removal and rotation of backup media
    Thanks to Export/Import users can safely remove the backup media (disks), rotate with other sets, or ship to another location.
  • Encrypted transport
    Data stream is sent via SSH for safe transport via the Internet.

How does it work?

On-site (Local) Data Protection

  • Stores data periodically on same server or local storage devices
  • Prevents data loss caused by Ransomware attacks, hardware failure, theft etc.
  • Enables immediate access to hot data without an internet connection
  • Minimizes downtime as the backup server takes over during the restore process

Off-site (Remote) Data Protection

  • Keeps often and seldom used data safe through backup copies to remote locations
  • Transfers encrypted data via Internet for maximum security
  • Enhances security with additional copies of data in different remote locations
  • Enables a full restore process of all company data

On- & Off-site Data Protection + High Availability Cluster
= Maximum Data Security

On-& Off-site Data Protection

  • Protects data by constantly backing it up and storing copies both locally and remotely
  • Allows restoring data to a previously saved point in time in case of hardware failure or data corruption

High Availability Cluster

  • Ensures business continuity by providing uninterrupted access to data even during hardware failures
  • Maximizes utilization of hardware and network resources

On-&Off-site Data Protection complements High Availability Clusters, but does not replace them!

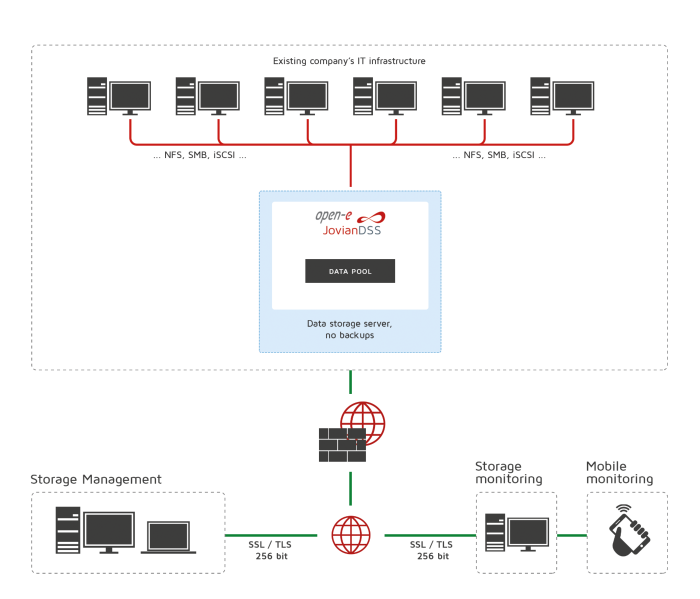

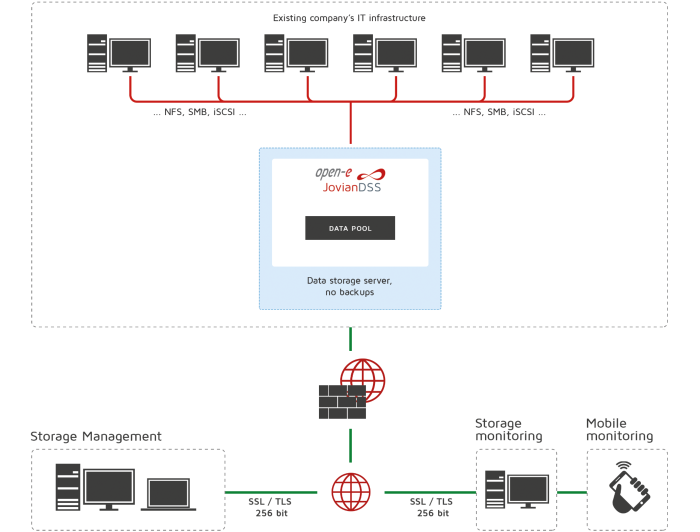

On-site Data
Protection
LEVEL 1

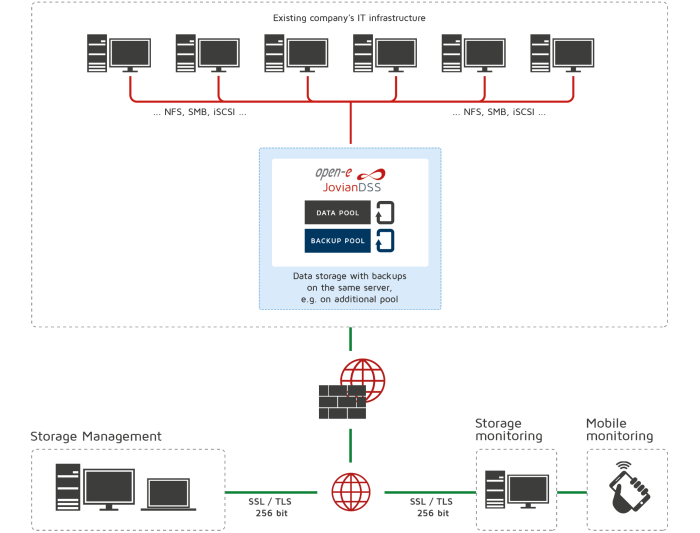

On-site Data
Protection
LEVEL 2

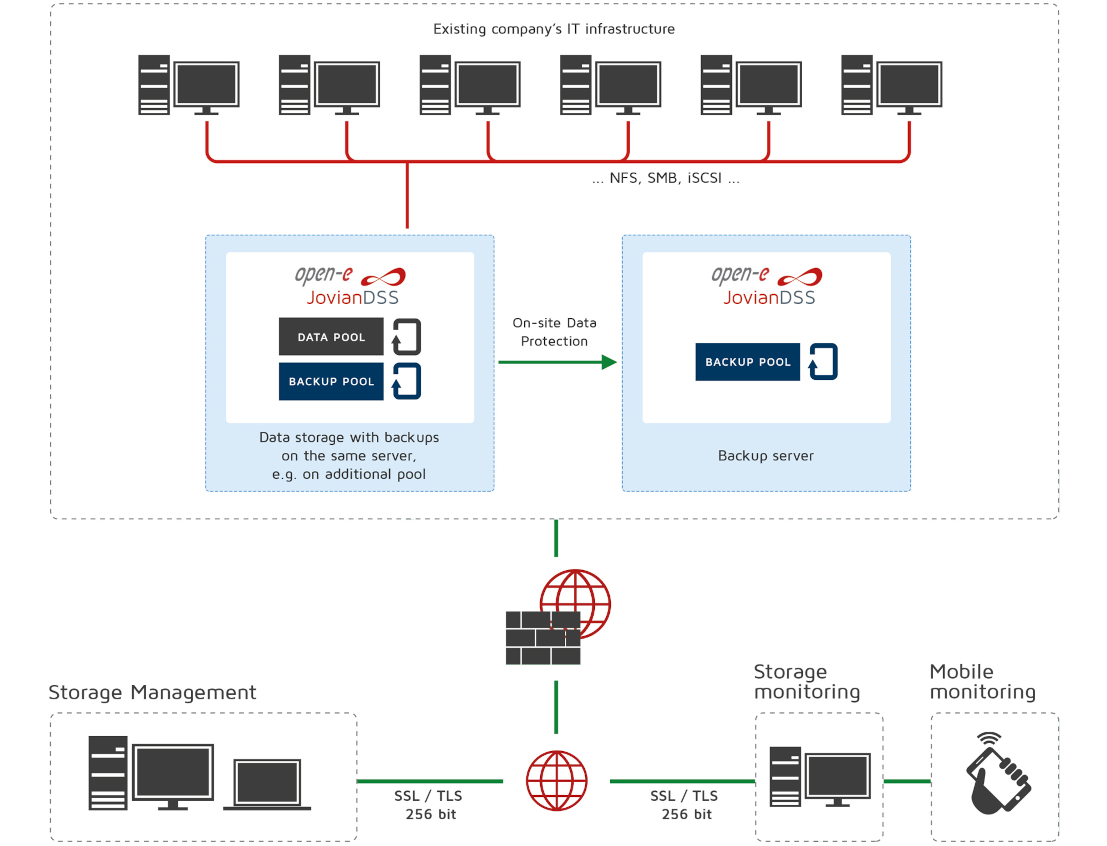

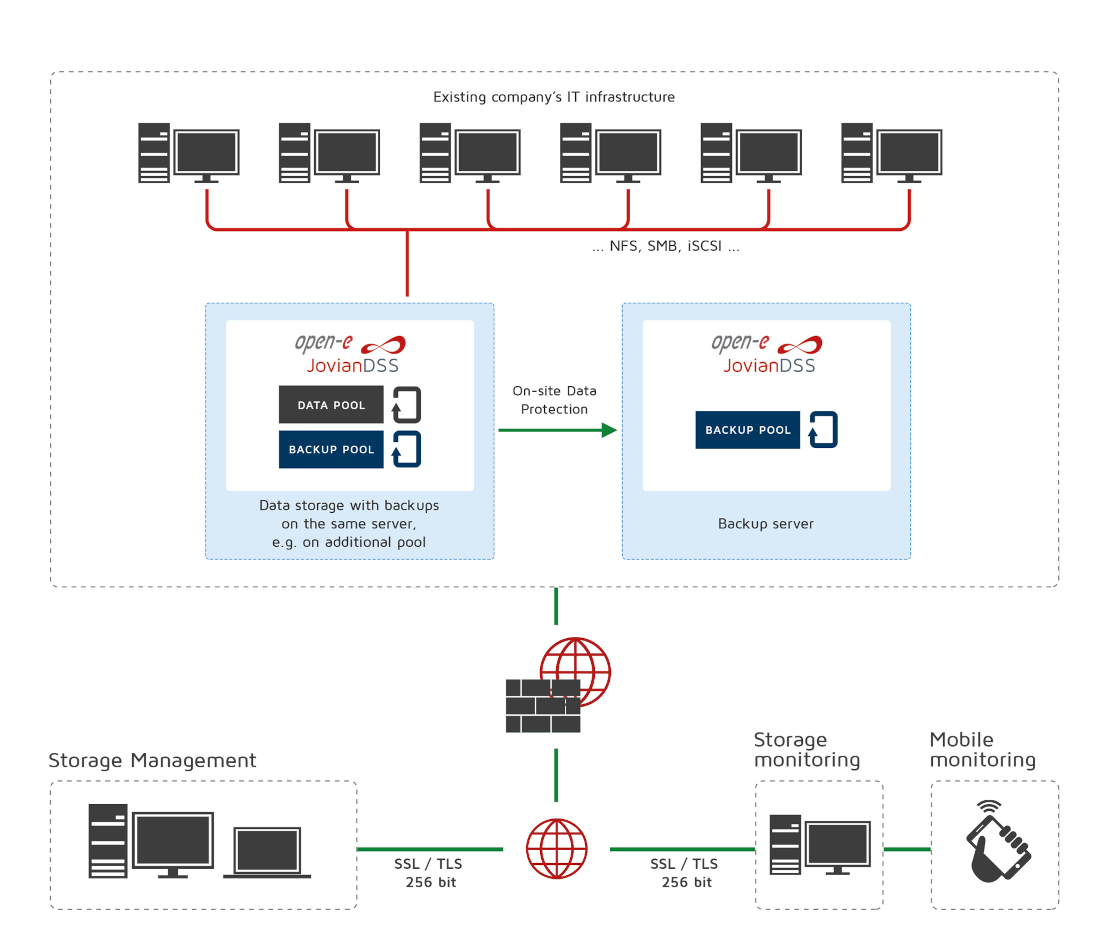

On-site Data
Protection
LEVEL 3

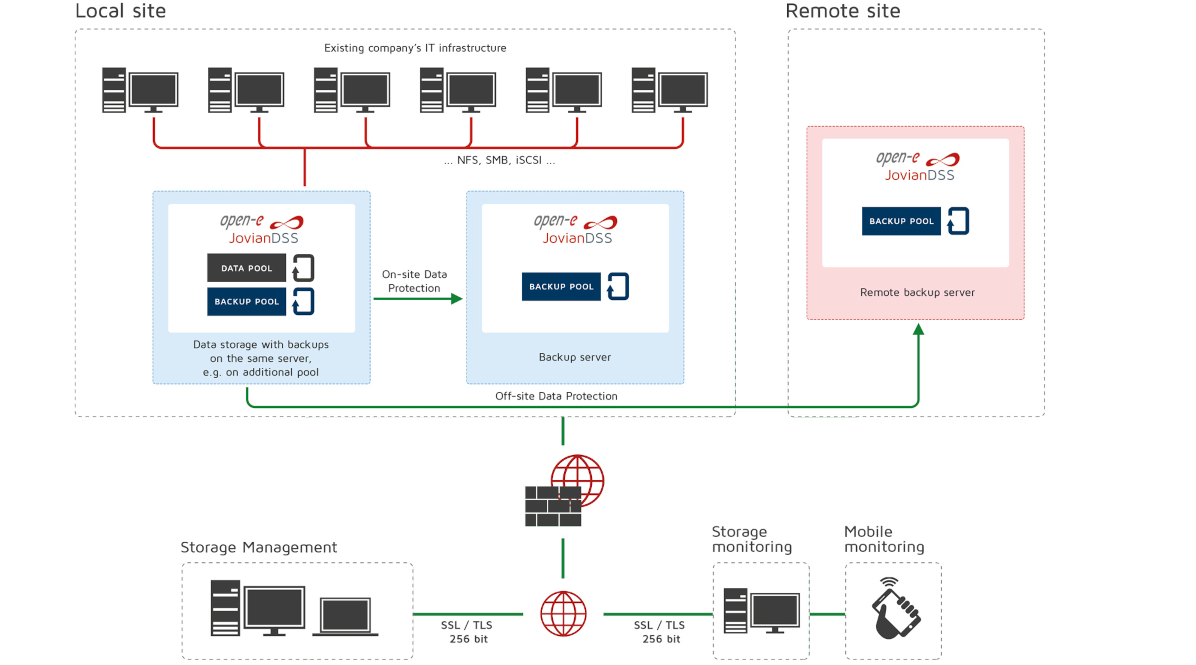

On-site & Off-site
Data
Protection

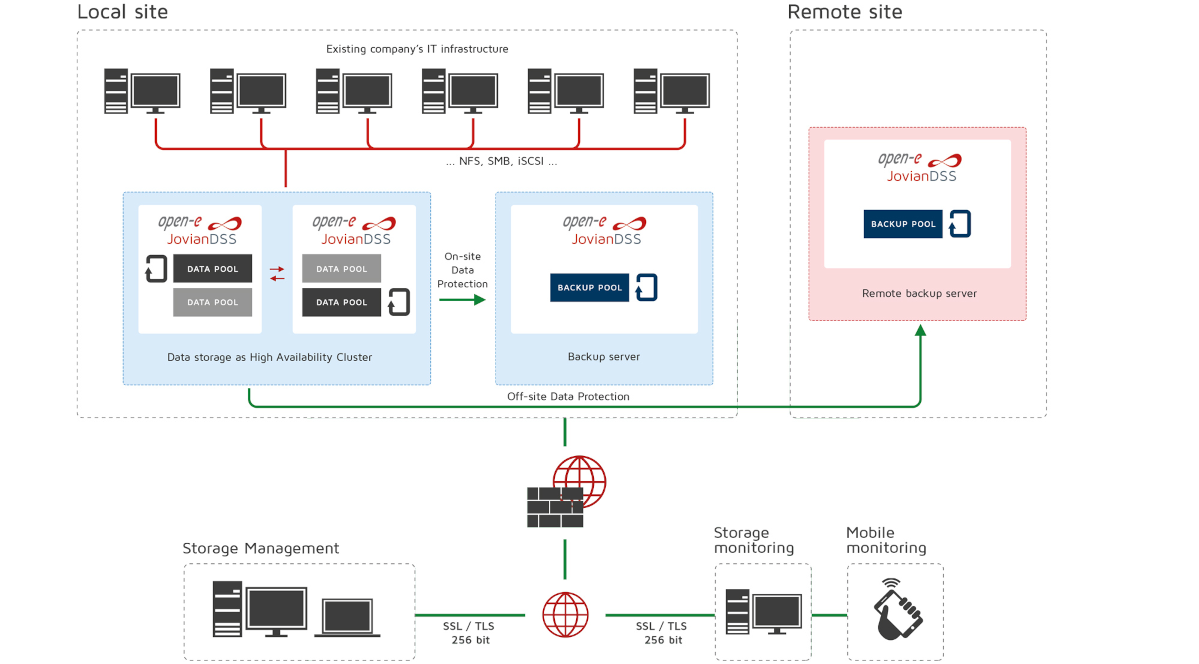

On-site & Off-site
Data Protection
with HA
  • Open-E JovianDSS production server
Risks Counter measure Restore time
Virus attack Snapshots Instant
Data corruption Self-healing Instant
Disk failure RAID Instant
Rebuild failure None None
System failure None None
Natural disaster None None
Theft None None
Human error None None
Downtime None None
  • Open-E JovianDSS production server
  • Backup on local pool
Risks Counter measure Restore time
Virus attack Snapshots Instant
Data corruption Self-healing Instant
Disk failure RAID Instant
Rebuild failure Second RAID Instant
System failure None None
Natural disaster None None
Theft None None
Human error None None
Downtime None None
  • Open-E JovianDSS production server
  • Backup on local pool
  • Backup on system in same location
Risks Counter measure Restore time
Virus attack Snapshots Instant
Data corruption Self-healing Instant
Disk failure RAID Instant
Rebuild failure Second RAID Instant
System failure Backup server Instant
Natural disaster None None
Theft None None
Human error None None
Downtime None None
  • Open-E JovianDSS production server
  • Backup on local pool
  • Backup on system in same location
  • Backup on remote site
Risks Counter measure Restore time
Virus attack Snapshots Instant
Data corruption Self-healing Instant
Disk failure RAID Instant
Rebuild failure Second RAID Instant
System failure Backup server Instant
Natural disaster Remote server Hours
Theft Remote server Hours
Human error Remote server Hours
Downtime None None
  • High-Availability Open-E JovianDSS production server
  • Backup on local pool
  • Backup on system in same location
  • Backup on remote site
Risks Counter measure Restore time
Virus attack Snapshots Instant
Data corruption Self-healing Instant
Disk failure RAID Instant
Rebuild failure Second RAID Instant
System failure Backup server Instant
Natural disaster Remote server Hours
Theft Remote server Hours
Human error Remote server Hours
Downtime High Availability Instant
